Types of PCB Drilled Holes

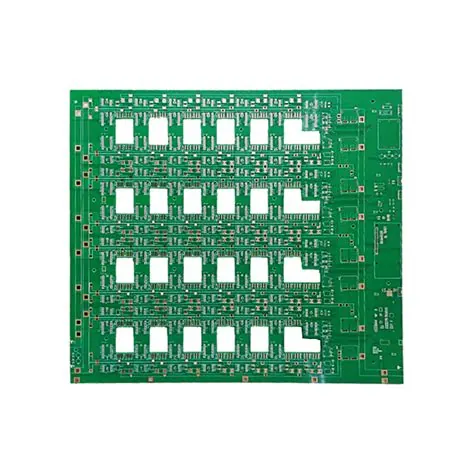

Introduction to PCB Holes

Printed Circuit Boards (PCBs) are essential components in modern electronics, providing a platform for electrical connections and mechanical support for various components. One crucial aspect of PCB design and manufacturing is the creation of holes. PCB holes serve multiple purposes, including component mounting, electrical connectivity, and heat dissipation. In this article, we will explore the different types of PCB Drilled Holes, their characteristics, and their applications.

Request HDI PCB Manufacturing & Assembly Quote Now

Types of PCB Holes

Through Holes

Through holes are the most common type of PCB holes. They are drilled completely through the PCB, creating a hole that extends from the top layer to the bottom layer. Through holes are typically used for mounting through-hole components, such as resistors, capacitors, and connectors. They also facilitate electrical connectivity between layers of the PCB.

Characteristics of Through Holes

Drilled completely through the PCB
Used for mounting through-hole components
Provide electrical connectivity between layers
Typically plated with conductive material

Applications of Through Holes

Through-hole component mounting
Electrical connectivity between layers
Mechanical support for components

Blind Vias

Blind vias are holes that are drilled from one side of the PCB and terminate at a specific inner layer without reaching the opposite side. They are used to establish electrical connections between the surface layer and one or more inner layers of the PCB. Blind vias are commonly employed in high-density PCB designs to save space and improve signal integrity.

Characteristics of Blind Vias

Drilled from one side of the PCB
Terminate at a specific inner layer
Used for electrical connections between surface and inner layers
Require precise depth control during drilling

Applications of Blind Vias

High-density PCB designs
Establishing electrical connections between surface and inner layers
Saving space on the PCB surface

Buried Vias

Buried vias are holes that are drilled between inner layers of the PCB and do not extend to either the top or bottom surface. They are used to create electrical connections between inner layers without occupying space on the outer layers. Buried vias are typically employed in complex, Multi-Layer PCB designs to optimize signal routing and reduce electromagnetic interference (EMI).

Characteristics of Buried Vias

Drilled between inner layers of the PCB
Do not extend to the top or bottom surface
Used for electrical connections between inner layers
Require precise alignment and registration during PCB fabrication

Applications of Buried Vias

Complex, multi-layer PCB designs
Optimizing signal routing
Reducing electromagnetic interference (EMI)
Saving space on the outer layers of the PCB

Micro Vias

Micro vias are tiny holes with diameters typically less than 0.15mm (6 mils). They are used in high-density interconnect (HDI) PCB designs to establish fine-pitch connections between layers. Micro vias are created using specialized laser drilling techniques, enabling precise and accurate hole formation.

Characteristics of Micro Vias

Tiny holes with diameters less than 0.15mm
Used in high-density interconnect (HDI) PCB designs
Created using laser drilling techniques
Enable fine-pitch connections between layers

Applications of Micro Vias

High-density interconnect (HDI) PCB designs
Fine-pitch component mounting
Establishing precise electrical connections between layers
Miniaturization of electronic devices

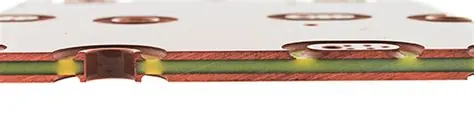

Plated Through Holes (PTH)

Plated through holes (PTH) are through holes that are plated with a conductive material, typically copper, to create electrical connections between layers. The plating process involves depositing a thin layer of copper on the walls of the drilled hole, ensuring reliable electrical conductivity. PTH is widely used in PCB manufacturing for component mounting and establishing electrical connections.

Characteristics of Plated Through Holes

Through holes plated with a conductive material (usually copper)
Create electrical connections between layers
Provide mechanical support for components
Require precise plating process control

Applications of Plated Through Holes

Component mounting (through-hole components)
Establishing electrical connections between layers
Providing mechanical stability to the PCB Assembly

Non-Plated Through Holes (NPTH)

Non-plated through holes (NPTH) are through holes that are not plated with a conductive material. They are used for various purposes, such as mechanical support, alignment, or mounting non-electrical components. NPTH are often employed in PCB designs where electrical connectivity is not required, and they can be created using standard drilling techniques.

Characteristics of Non-Plated Through Holes

Through holes without conductive plating
Used for mechanical support, alignment, or mounting non-electrical components
Do not provide electrical connectivity
Created using standard drilling techniques

Applications of Non-Plated Through Holes

Mounting non-electrical components (e.g., spacers, standoffs)
Alignment of PCB Layers or components
Mechanical support for the PCB assembly

Hole Drilling Techniques

Mechanical Drilling

Mechanical drilling is the most common method for creating holes in PCBs. It involves using a drill bit to physically remove material from the PCB Substrate. Mechanical drilling is suitable for creating through holes, blind vias, and non-plated through holes. The process is relatively fast and cost-effective, making it widely used in PCB manufacturing.

Characteristics of Mechanical Drilling

Uses a drill bit to remove material from the PCB substrate
Suitable for creating through holes, blind vias, and non-plated through holes
Fast and cost-effective drilling method
Requires precise drill bit selection and machine setup

Applications of Mechanical Drilling

Creating through holes for component mounting
Drilling blind vias for inner layer connections
Creating non-plated through holes for mechanical support or alignment

Laser Drilling

Laser drilling is an advanced technique used for creating micro vias and other precision holes in PCBs. It employs a focused laser beam to vaporize the PCB material, resulting in clean and accurate holes. Laser drilling is particularly useful for high-density PCB designs that require fine-pitch connections and precise hole formation.

Characteristics of Laser Drilling

Uses a focused laser beam to vaporize PCB material
Creates clean and accurate holes
Suitable for creating micro vias and precision holes
Enables high-density PCB designs with fine-pitch connections

Applications of Laser Drilling

Creating micro vias for high-density interconnect (HDI) PCBs
Drilling precise holes for fine-pitch component mounting
Creating intricate hole patterns for specialized applications

Hole Plating Techniques

Electroplating

Electroplating is a common method used for plating through holes and vias in PCBs. It involves immersing the PCB in an electrolytic solution containing the desired plating material (usually copper). An electric current is applied, causing the plating material to deposit on the walls of the holes, creating a conductive layer.

Characteristics of Electroplating

Immerses the PCB in an electrolytic solution
Uses an electric current to deposit plating material on hole walls
Creates a conductive layer in through holes and vias
Provides reliable electrical connectivity between layers

Applications of Electroplating

Plating through holes for component mounting
Creating conductive vias for inter-layer connections
Enhancing electrical conductivity and signal integrity

Electroless Plating

Electroless plating is an alternative method for plating through holes and vias in PCBs. Unlike electroplating, it does not require an external electric current. Instead, it relies on an autocatalytic chemical reaction to deposit the plating material on the hole walls. Electroless plating is often used for high-aspect-ratio holes or when a more uniform plating thickness is desired.

Characteristics of Electroless Plating

Uses an autocatalytic chemical reaction to deposit plating material
Does not require an external electric current
Suitable for high-aspect-ratio holes
Provides a more uniform plating thickness

Applications of Electroless Plating

Plating high-aspect-ratio holes in multi-layer PCBs
Achieving uniform plating thickness in through holes and vias
Plating holes in non-conductive substrates

Design Considerations for PCB Holes

When designing PCBs, several factors must be considered to ensure the proper functioning and manufacturability of the holes. These considerations include hole size, aspect ratio, pad size, and drilling tolerances.

Hole Size

The hole size is a critical factor in PCB design, as it affects component compatibility, manufacturing feasibility, and electrical performance. The hole size should be chosen based on the component leads or pins that will be inserted into the holes. It is essential to follow the manufacturer’s recommendations and industry standards when selecting hole sizes.

Aspect Ratio

The aspect ratio of a hole refers to the ratio of its depth to its diameter. High-aspect-ratio holes, where the depth is much greater than the diameter, can pose challenges during drilling and plating processes. It is crucial to consider the aspect ratio when designing PCBs, especially for multi-layer boards, to ensure proper hole formation and plating coverage.

Pad Size

The pad size around a hole is another important consideration in PCB design. The pad provides a surface for soldering components and ensures reliable electrical connections. The pad size should be sufficient to accommodate the component leads or pins and allow for proper soldering. It is essential to follow the component manufacturer’s recommendations and industry standards when determining pad sizes.

Drilling Tolerances

Drilling tolerances refer to the acceptable variations in hole size, position, and shape during the PCB manufacturing process. It is crucial to specify appropriate drilling tolerances based on the PCB design requirements and manufacturing capabilities. Tighter tolerances may be necessary for high-density designs or critical applications, while looser tolerances can be acceptable for less demanding designs.

Frequently Asked Questions (FAQ)

What is the difference between a through hole and a via?
A through hole is a hole that extends from the top layer to the bottom layer of a PCB, while a via is a hole that connects two or more layers within the PCB. Through holes are typically used for mounting components, while vias are used for inter-layer electrical connections.
Can micro vias be created using mechanical drilling?
Micro vias are typically created using laser drilling techniques due to their small size and precise requirements. Mechanical drilling may not be suitable for creating micro vias, as it has limitations in terms of hole size and accuracy.
What is the purpose of plating through holes in PCBs?
Plating through holes in PCBs serves two main purposes: establishing electrical connections between layers and providing mechanical support for components. The conductive plating material, usually copper, ensures reliable electrical conductivity and helps secure the components to the PCB.
How does the aspect ratio affect the drilling and plating processes?
High-aspect-ratio holes, where the depth is much greater than the diameter, can pose challenges during drilling and plating processes. Drilling high-aspect-ratio holes requires specialized equipment and techniques to ensure proper hole formation. Plating high-aspect-ratio holes can be difficult, as achieving uniform plating coverage along the entire depth of the hole becomes more challenging.
What are the advantages of using laser drilling for PCB holes?
Laser drilling offers several advantages for PCB hole creation, including precise and accurate hole formation, the ability to create micro vias, and suitability for high-density PCB designs. Laser drilling enables the creation of clean and small holes, making it ideal for fine-pitch connections and intricate hole patterns.

Conclusion

PCB drilled holes play a vital role in the functionality and performance of electronic devices. Understanding the different types of PCB holes, their characteristics, and their applications is essential for effective PCB design and manufacturing. Through holes, blind vias, buried vias, micro vias, plated through holes, and non-plated through holes each serve specific purposes and require appropriate design considerations.

Hole drilling techniques, such as mechanical drilling and laser drilling, along with hole plating methods like electroplating and electroless plating, enable the creation of reliable and conductive holes in PCBs. Designers must consider factors such as hole size, aspect ratio, pad size, and drilling tolerances to ensure the proper functioning and manufacturability of PCBs.

As PCB technology continues to advance, the importance of optimizing hole design and manufacturing processes becomes increasingly critical. By leveraging the various types of PCB holes and their associated techniques, designers and manufacturers can create high-quality, reliable, and high-performance electronic devices that meet the ever-growing demands of the industry.
