Dielectric Definition

A dielectric is an electrical insulator that can be polarized by an applied electric field. When a dielectric material is placed in an electric field, electric charges do not flow through the material as they do in an electrical conductor, but only slightly shift from their average equilibrium positions causing dielectric polarization. The ability of a material to resist this polarization by an applied electric field is known as its dielectric strength.

What is Dielectric Constant?

The dielectric constant, also known as the relative permittivity, is a measure of how easily a material can become polarized by an electric field. It is defined as the ratio of the electric permittivity of a substance to the electric permittivity of free space. The dielectric constant is a dimensionless number and is always greater than or equal to 1.

The dielectric constant (εᵣ) can be expressed mathematically as:

εᵣ = ε/ε₀

Where:
– ε is the permittivity of the material
– ε₀ is the permittivity of free space (8.85 × 10⁻¹² F/m)

A high dielectric constant indicates that a material can store a large amount of electrical energy in an electric field. Materials with high dielectric constants are often used in capacitors to increase their capacitance.

Factors Affecting Dielectric Constant

Several factors can influence a material’s dielectric constant:

1. Temperature: The dielectric constant of a material can change with temperature. In general, the dielectric constant decreases with increasing temperature.

2. Frequency: The dielectric constant of a material can also depend on the frequency of the applied electric field. At high frequencies, the dielectric constant may decrease because the polarization of the material cannot keep up with the rapidly changing field.

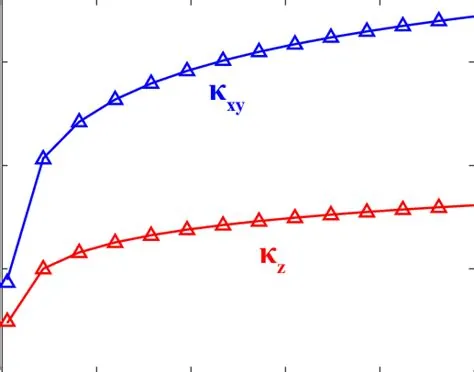

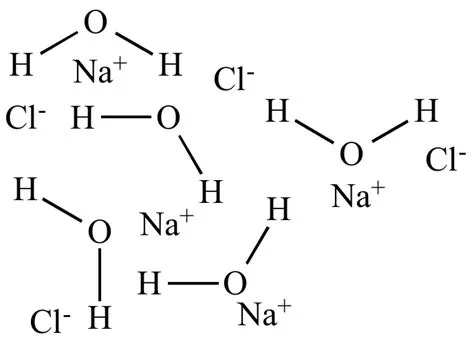

3. Composition: The chemical composition and structure of a material can significantly affect its dielectric constant. Materials with polar molecules, such as water, tend to have higher dielectric constants than those with non-polar molecules.

4. Humidity: The presence of moisture can influence the dielectric constant of a material. Water has a high dielectric constant, so increasing humidity can lead to an increase in the overall dielectric constant of a material.

Dielectric Materials

Dielectric materials are insulators that can be polarized by an applied electric field. They are used in various electrical and electronic applications, such as capacitors, transformers, and insulators. Some common dielectric materials include:

1. Ceramics: Ceramic materials, such as porcelain and glass, have high dielectric constants and are often used in capacitors and insulators.

2. Polymers: Many plastic materials, such as polyethylene and polypropylene, are good dielectric materials. They are often used in wire and cable insulation.

3. Paper and oil: Paper impregnated with oil is commonly used as a dielectric material in high-voltage capacitors and transformers.

4. Mica: Mica is a naturally occurring mineral with excellent dielectric properties. It is often used in high-temperature and high-voltage applications.

5. Air and vacuum: Air and vacuum are also considered dielectric materials, although their dielectric constants are close to 1.

Dielectric Strength

Dielectric strength is the maximum electric field that a dielectric material can withstand before breaking down and becoming electrically conductive. It is usually expressed in volts per meter (V/m) or kilovolts per millimeter (kV/mm).

The dielectric strength of a material depends on several factors, including:

1. Thickness: The thicker the dielectric material, the higher its dielectric strength. This is because a thicker material can withstand a larger potential difference before breaking down.

2. Temperature: The dielectric strength of a material generally decreases with increasing temperature.

3. Frequency: The dielectric strength of a material may also depend on the frequency of the applied electric field.

4. Impurities and defects: The presence of impurities or defects in a dielectric material can lower its dielectric strength by providing a path for electrical breakdown.

Applications of Dielectric Materials

Dielectric materials are used in a wide range of electrical and electronic applications:

1. Capacitors: Dielectric materials are used in capacitors to store electrical energy in an electric field. The dielectric material increases the capacitance of the capacitor and helps to prevent electrical breakdown.

2. Transformers: Dielectric materials, such as oil and paper, are used in transformers to insulate the windings and prevent electrical breakdown.

3. Insulators: Dielectric materials are used as insulators in electrical power transmission and distribution to prevent current from flowing through unwanted paths.

4. Printed circuit boards: The substrate material of printed circuit boards is typically a dielectric material, such as fiberglass or ceramic, which insulates the conductive tracks from each other.

5. Microwave and RF applications: Dielectric materials are used in microwave and radio-frequency (RF) applications to control the propagation of electromagnetic waves.

Dielectric Constant Table

The following table lists the dielectric constants of some common materials at room temperature:

Material	Dielectric Constant (εᵣ)
Vacuum	1.0
Air (at 1 atm)	1.0006
PTFE (Teflon)	2.1
Polyethylene	2.25
Polypropylene	2.2-2.36
Paper	2.3
Fused Quartz	3.78
Glass	4-10
Mica	5.4
Porcelain	6-8
Distilled Water	80
Barium Strontium Titanate	500-10,000

Note that these values are approximate and can vary depending on factors such as temperature, frequency, and purity of the material.

Frequently Asked Questions (FAQ)

1. What is the difference between dielectric constant and dielectric strength?

The dielectric constant is a measure of a material’s ability to store electrical energy in an electric field, while dielectric strength is the maximum electric field that a material can withstand before breaking down and becoming electrically conductive.

2. Can a material have a dielectric constant less than 1?

No, the dielectric constant is defined as the ratio of the permittivity of a material to the permittivity of free space. Since the permittivity of free space is the lowest possible permittivity, the dielectric constant of a material cannot be less than 1.

3. Why do some materials have higher dielectric constants than others?

Materials with polar molecules, such as water, tend to have higher dielectric constants than those with non-polar molecules. The presence of these polar molecules allows the material to become more easily polarized by an applied electric field, resulting in a higher dielectric constant.

4. How does temperature affect the dielectric constant of a material?

In general, the dielectric constant of a material decreases with increasing temperature. This is because the thermal motion of the molecules in the material makes it more difficult for them to become aligned with an applied electric field.

5. What are some common applications of dielectric materials?

Dielectric materials are used in a wide range of electrical and electronic applications, including capacitors, transformers, insulators, printed circuit boards, and microwave and RF devices. They are essential for storing electrical energy, preventing electrical breakdown, and controlling the propagation of electromagnetic waves.

Conclusion

In summary, dielectric materials are insulators that can be polarized by an applied electric field. The dielectric constant is a measure of how easily a material can become polarized, while dielectric strength is the maximum electric field that a material can withstand before breaking down.

Dielectric materials are used in a wide range of electrical and electronic applications, and their properties can be influenced by factors such as temperature, frequency, and composition. Understanding the behavior of dielectric materials is crucial for designing safe and efficient electrical and electronic devices.
