What is a Walkie-Talkie?
A walkie-talkie, also known as a handheld transceiver (HT), is a portable, two-way radio that allows users to communicate wirelessly over short distances. Walkie-talkies are commonly used in various settings, such as outdoor activities, construction sites, and emergency situations.
Components Required for a DIY Walkie-Talkie
To build your own walkie-talkie, you’ll need the following components:
Component | Description |
---|---|
Microcontroller | The brain of the walkie-talkie, e.g., Arduino Nano |
RF module | Enables wireless communication, e.g., nRF24L01+ |
PTT (Push-to-Talk) button | Activates the microphone for transmission |

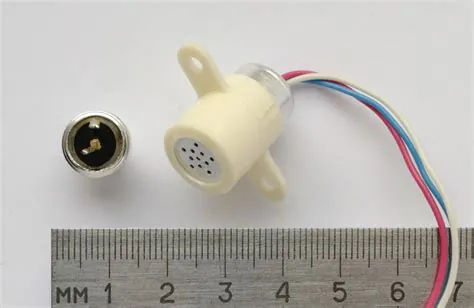

Microphone | Captures the user’s voice for transmission |
Speaker | Outputs the received audio |
Battery | Powers the walkie-talkie, e.g., 9V battery |
Battery connector | Connects the battery to the circuit |
Antenna | Improves the range and clarity of the wireless signal |
Resistors, capacitors, and other components | Used for various purposes in the circuit |
Tools Required for Building a DIY Walkie-Talkie
In addition to the components, you’ll also need the following tools:
- Soldering iron and solder
- Wire cutters and strippers
- Breadboard (for prototyping)
- Multimeter
- PCB (Printed Circuit Board) or perfboard
- Enclosure for the final product
Step-by-Step Instructions for Building a DIY Walkie-Talkie
Step 1: Prototyping the Circuit
-
Begin by prototyping the circuit on a breadboard. This allows you to test the functionality of the components and make any necessary adjustments before soldering them onto a PCB or perfboard.
-
Connect the microcontroller, RF module, PTT button, microphone, speaker, and other components according to the schematic diagram. (Include a schematic diagram if possible)
-
Test the circuit to ensure that all components are working as expected.
Step 2: Designing the PCB
-
Once you have a working prototype, design the PCB using PCB design software, such as EagleCAD or KiCad.
-
Ensure that the PCB layout is optimized for size and functionality, considering factors such as component placement, trace width, and ground planes.
-
Order the PCB from a PCB Fabrication service or, if you have the necessary equipment, fabricate the PCB yourself.
Step 3: Soldering the Components
-
Once you have the PCB, begin soldering the components onto it according to the schematic diagram and PCB layout.
-
Pay close attention to the orientation of polarized components, such as electrolytic capacitors and diodes.
-
Double-check each solder joint to ensure a good connection and to avoid short circuits.
Step 4: Programming the Microcontroller
-
Write the firmware for the microcontroller using the Arduino IDE or another appropriate programming environment.
-
The firmware should handle tasks such as reading the PTT button state, transmitting and receiving data via the RF module, and processing audio input and output.
-
Upload the firmware to the microcontroller using a USB programmer or an in-circuit serial programming (ICSP) interface.
Step 5: Testing and Debugging
-
Once the components are soldered and the firmware is uploaded, test the walkie-talkie to ensure it functions as intended.
-
If any issues arise, use a multimeter and oscilloscope to diagnose and debug the problem. Common issues may include poor solder joints, incorrect component placement, or bugs in the firmware.
Step 6: Enclosure Design and Assembly
-
Design an enclosure for the walkie-talkie using CAD software or by modifying an existing enclosure.
-
Consider factors such as ergonomics, durability, and access to the PTT button, microphone, and speaker when designing the enclosure.
-
3D print or fabricate the enclosure using the appropriate materials, such as ABS or PLA plastic.
-
Assemble the walkie-talkie by mounting the PCB and other components inside the enclosure, ensuring that everything fits securely and the buttons and ports are easily accessible.
Frequently Asked Questions (FAQ)
-
What is the range of a DIY walkie-talkie?
The range of a DIY walkie-talkie depends on factors such as the RF module used, antenna design, and environmental conditions. With the nRF24L01+ module and a well-designed antenna, you can expect a range of up to 100 meters in open areas. -
Can I use a different microcontroller or RF module?
Yes, you can use a different microcontroller or RF module, but you may need to adapt the schematic and firmware accordingly. Make sure that the microcontroller has sufficient processing power and memory for the walkie-talkie application and that the RF module operates in a frequency band that is legal in your country. -
Is it legal to use a DIY walkie-talkie?
The legality of using a DIY walkie-talkie depends on your local laws and regulations. In most countries, it is legal to use low-power, short-range devices like walkie-talkies without a license, as long as they operate in designated frequency bands. However, it is your responsibility to ensure compliance with your local regulations. -
How can I improve the audio quality of my DIY walkie-talkie?
To improve the audio quality, you can use higher-quality microphones and speakers, implement noise cancellation techniques in the firmware, and optimize the Audio Amplifier Circuit for better signal-to-noise ratio. -
Can I add features like voice activation or encryption to my DIY walkie-talkie?
Yes, you can add various features to your walkie-talkie by modifying the firmware and hardware. Voice activation can be implemented using a voice activity detection (VAD) algorithm, while encryption can be achieved using a secure communication protocol like AES. However, these features may require more advanced programming skills and additional hardware resources.
Conclusion
Building your own DIY walkie-talkie can be a rewarding and educational experience, allowing you to gain a deeper understanding of electronics and wireless communication. By following this step-by-step guide and using the appropriate components and tools, you can create a functional and customizable walkie-talkie that suits your needs. Remember to always comply with local laws and regulations when using your homemade device, and have fun exploring the world of DIY Electronics!
